カラム ― 概要

    HPLCカラム
>>関連ページ
SunBridgeは最新技術を投入して開発した全多孔質ハイブリッドカラムで、卓越した長期安定性を提供します。Prominertカラムは、超高密度疎水化処理を採用することで、優れた分離性能と高い耐久性を実現しています。SunArmorは、従来型シリカの分離特性を損なうことなく、ハイブリッドクラスの耐久性を発揮します。ArmorShellおよびSunShellは、コアシェル技術を基盤としたカラムで、低背圧条件下において高い分離効率を提供します。Sunniestは、当社独自に開発したエンドキャッピング技術により、極めて高度な不活性表面を実現しています。Sunriseは、従来のエンドキャップ型HPLCカラムと異なる独自の選択性を提供します。
    専門・特化型カラム
     (For Bio, HILIC, SFC, and more)
当社では、多様な分析ニーズに対応するため用途別に最適化したSunShellカラムを開発しています。SunShell PeptideおよびSunShell Proteinは、ペプチド・タンパク質のLC/MS分析における非特異的吸着を低減するほか、SunShell Bioはタンパク質から抗体まで幅広い生体高分子の分離に対応します。SunShell HILICおよびSunShell SFCは、極性化合物の保持およびSFC分離を高度に拡張します。その他、メタルフリー、マイクロ、ナノカラムを含む各種特殊カラム管も自社製造しており、当社製のすべての充填剤に対してセミオーダー対応が可能です。

HPLCカラム

SunBridge™     >>詳細

Particle material
  Fully hybrid silica
Particle size  /  Pore size
  1.8 μm, 3 μm, 5 μm  /  15 nm
Stationary phase
  C18, PFP-R

Prominert™     >>詳細

Particle material
  High-efficiency silica
Particle size  /  Pore size
  3.5 μm  /  9 nm
Stationary phase
  C18, Biphenyl

SunArmor™     >>詳細

Particle material
  High-durability silica
Particle size  /  Pore size
  3 μm, 5 μm  /  12 nm
Stationary phase
  C18, RP-AQUA, NH2

ArmorShell™     >>詳細

Particle material
  Core-shell silica
Particle size  /  Pore size
  2.6 μm  /  9 nm
Stationary phase
  C18

SunShell™     >>詳細

Particle material
  Core-shell silica
Particle size  /  Pore size
  2 μm, 2.6 μm, 3.5 μm, 5 μm  /  9 nm, 12 nm (C30), 16 nm (RP-AQUA)
Stationary phase
  C18, C8, RP-AQUA, C30, Biphenyl, Phenyl, PFP, PFP&C18, Diol, Silica

Sunniest™     >>詳細

Particle material
  High-purity silica
Particle size  /  Pore size
  1.8 μm, 2 μm, 3 μm, 5 μm, 10 μm  /  12 nm, 10 nm (2 μm)
Stationary phase
  C18, C8, RP-AQUA, Biphenyl, PhE, PFP, PFP&C18, Cyano, Silica

Sunrise™     >>詳細

Particle material
  High-purity silica
Particle size  /  Pore size
  3 μm, 5 μm  /  12 nm
Stationary phase
  C18-SAC, C30 (C28)

専門・特化型カラム

SunShell Peptide™     >>詳細

Particle material
  Core-shell silica
Particle size  /  Pore size
  2.6 μm  /  16 nm
Stationary phase
  C18, C9 (HFC18)

SunShell  Protein™     >>詳細

Particle material
  Core-shell silica
Particle size  /  Pore size
  3.4 μm  /  30 nm
Stationary phase
  C8

SunShell Bio™     >>詳細

Particle material
  Core-shell silica
Particle size  /  Pore size
  2.6 μm  /  100 nm
Stationary phase
  C18, C4, Ph

SunShell HILIC™     >>詳細

Particle material
  Core-shell silica
Particle size
  2.6 μm
Stationary phase
  Amide, Diol, Silica

SunShell SFC™     >>詳細

Particle material
  Core-shell silica
Particle size
  2.6 μm
Stationary phase
  C18, C8, RP-AQUA, Biphenyl, PhE, PFP, PFP&C18, Diol, Silica, 2-EP

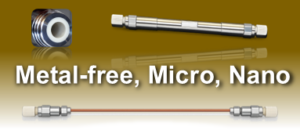

特殊なカラム管   >>詳細

Metal-free columns
  Organic surface design  |  PS inert™   (2.1 mm i.d.)
  Inner PEEK design  |  MTF™   (1.0, 2.1 mm i.d.)
  Inner PEEK design  |  M         (2.1,  4.6 mm i.d.)
Micro columns
  Glass-lined hardware   (0.3,  0.5 mm i.d.)
Nano columns
  PEEK/silica composite   (75,  100,  150 μm i.d.)
