Products – Specialty hardware

Specialty hardware ― overview

    Metal-free columns
We offer the inert column hardware option, PS inert, which features a multilayer organic inert surface treatment applied to stainless steel components while retaining the robustness and mechanical strength of stainless. MTF (Metal-Touch-Free) adopts a PEEK–stainless steel double-tube structure, in which the inner PEEK construction provides a completely metal-free wetted flow path and compatibility with high-pH conditions. The Bioinert System Column (IDEX) also features a proprietary inner PEEK structure, but differs in its overall design concept. All of these hardware options are available as custom orders with all of our packing materials.
    Micro & nano columns
We manufacture general-purpose analytical columns (1.0–4.6 mm i.d.) and sub-narrow-bore columns for micro- and nano-flow applications (0.075–0.5 mm i.d.). Micro columns are available with 0.3 or 0.5 mm i.d., while Nano columns are offered with 0.075–0.15 mm i.d. In all cases, we can manufacture packed columns using appropriately selected hardware components.

Metal-free columns

PS inert™     Presentation Contact Us

Feature
  Organic surface design
Column size
  50 mm, 100 mm, 150 mm (2.1 mm i.d.)
Remarks
  Avoid use at mobile phase pH values above 9.

MTF™     Contact Us

Feature
  Inner PEEK design
Column size
  50 mm, 100 mm, 150 mm (1.0 mm i.d.)
  50 mm, 100 mm, 150 mm (2.1 mm i.d.)
Remarks
  Stable over a wide range of mobile phase pH conditions

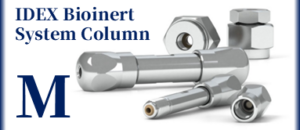

Bioinert System Column (IDEX)   Contact Us

Feature
  Inner PEEK design
Column size
  50 mm, 100 mm, 150 mm (2.1 mm i.d.)
  50 mm, 100 mm, 150 mm (4.6 mm i.d.)
Remarks
  Stable over a wide range of mobile phase pH conditions

Micro & nano columns

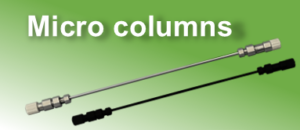

Micro columns     Contact Us

Tubing material
  Glass-lined hardware
Column size
  50 mm, 150 mm (0.3 mm i.d.)
  50 mm, 150 mm (0.5 mm i.d.)
Remarks
  Not completely metal-free, as the frit contains a metal sheet.

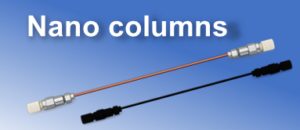

Nano columns    Contact Us

Tubing material
  PEEK-silica composite (PEEKsil®)
Column size
  50 mm, 150 mm (0.075 mm i.d.)
  50 mm, 150 mm (0.10 mm i.d.)
  50 mm, 150 mm (0.15 mm i.d.)
Remarks
  Not completely metal-free, as the frit contains a metal sheet.
